Description
Product details
Function: The MUT-III diagnostic tool is used for vehicle fault diagnosis, ECU reprogramming, data recording, and measuring voltage, ohms, and belt tension, supporting multiple vehicle models and communication protocols.

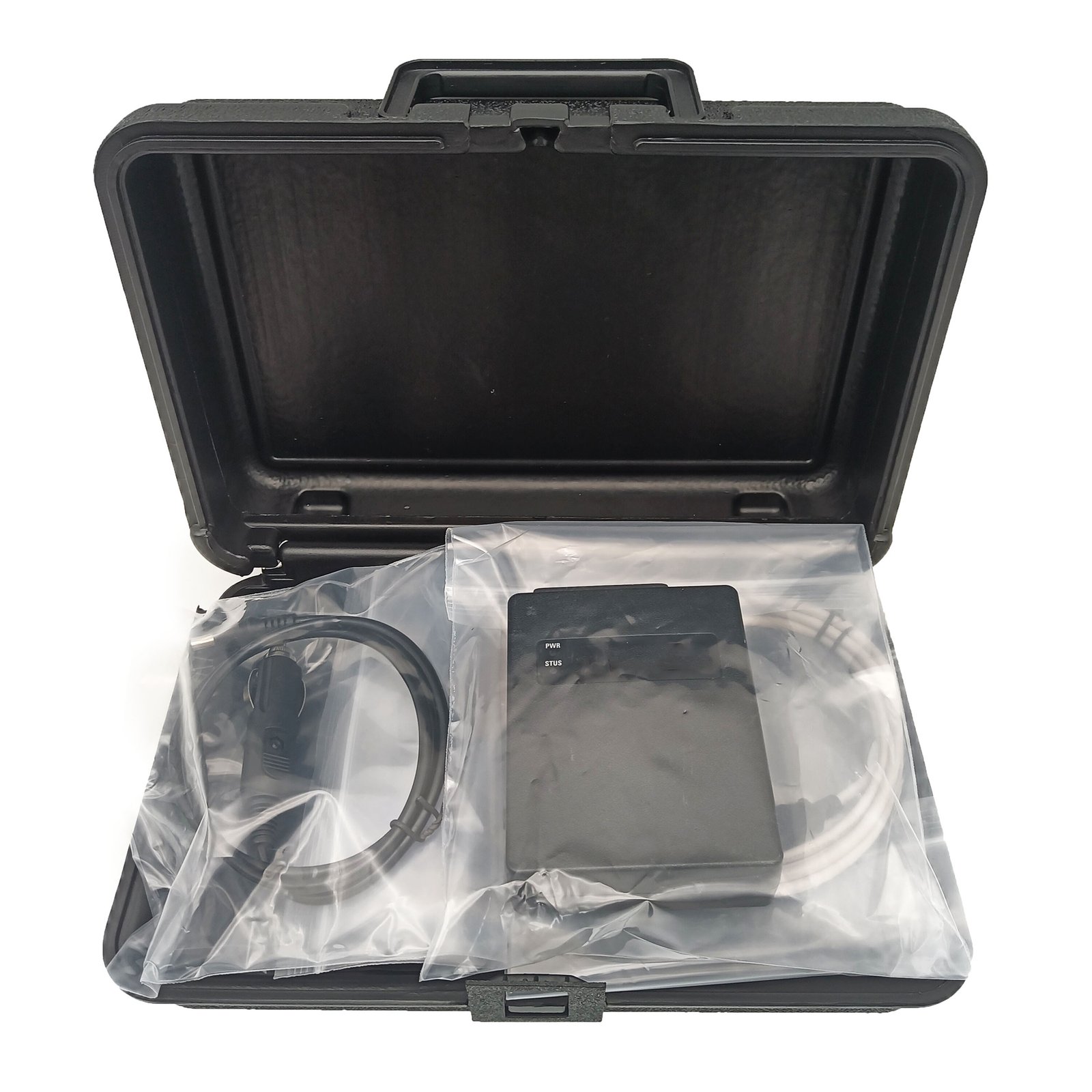

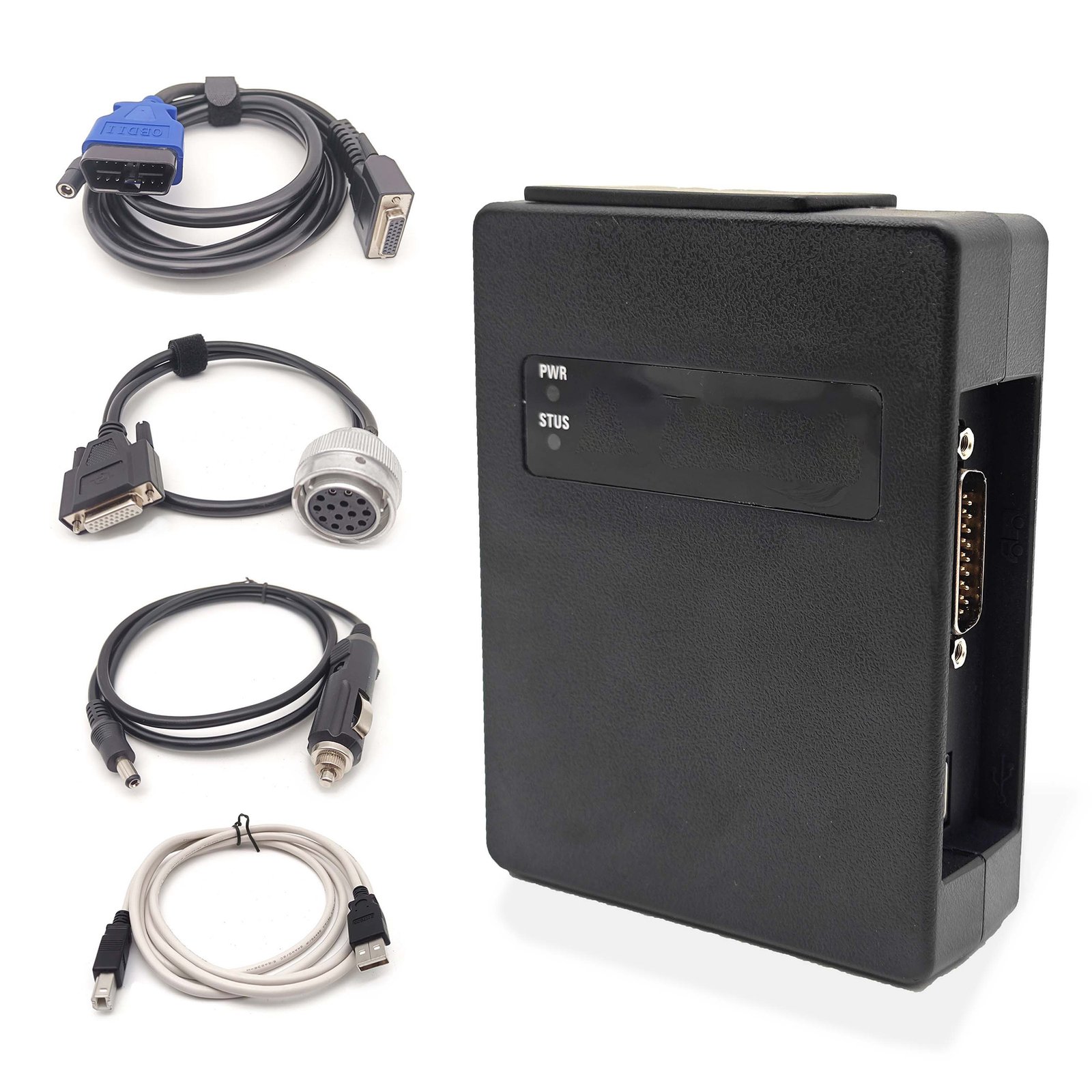

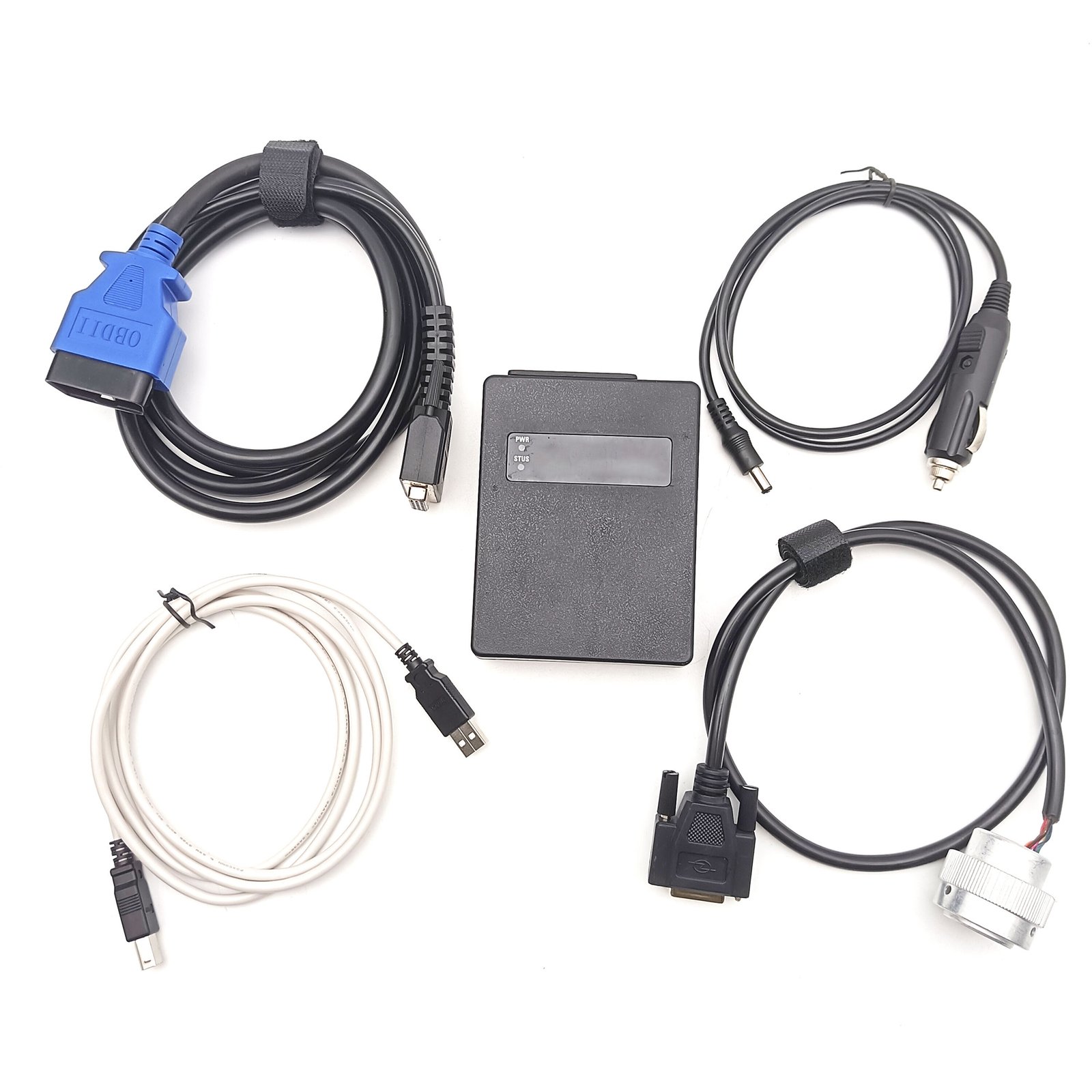

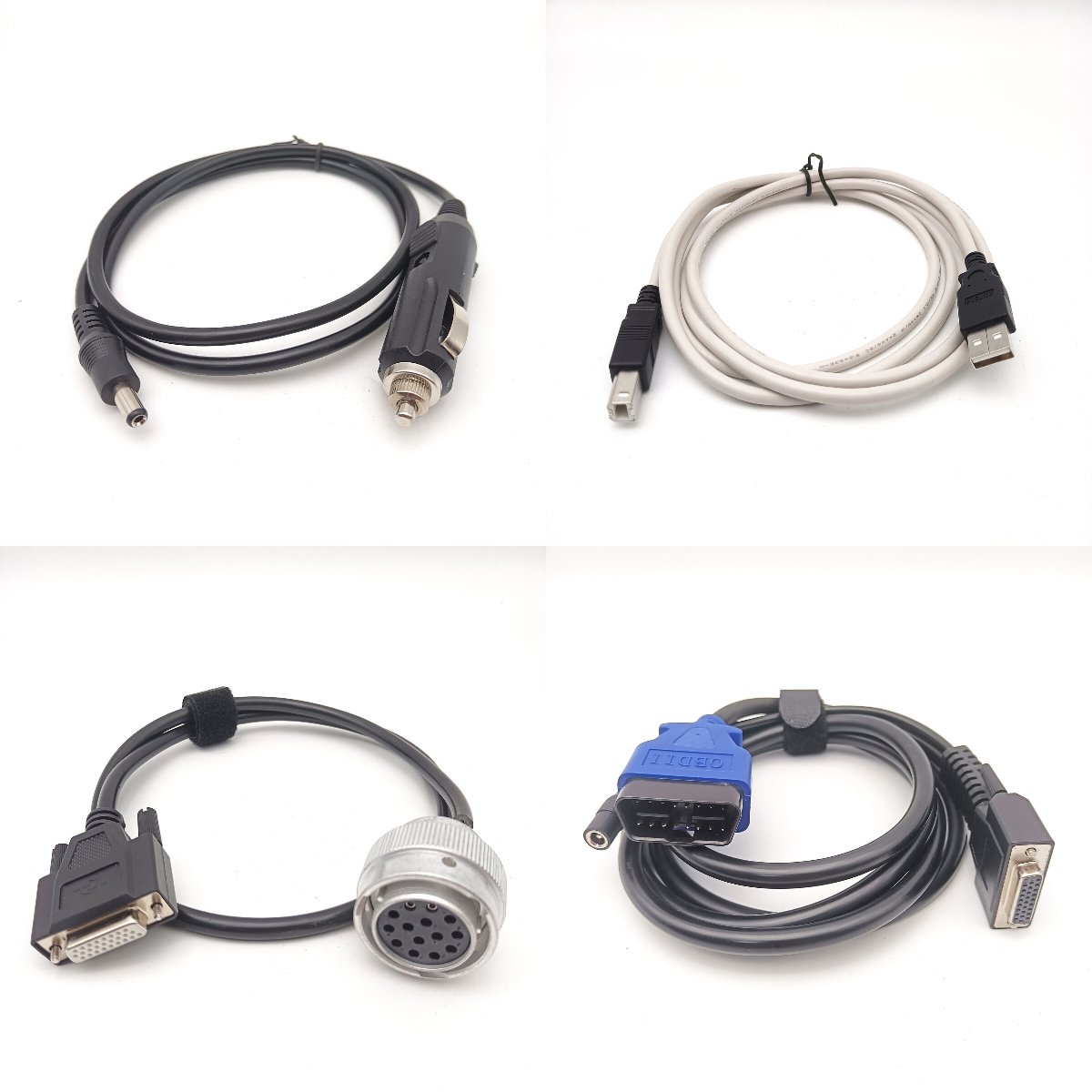

Package List:
1*Adapter
1*USB Cable
1*16 pin OBD Cable
1* 9 pin Cable
1*Cigarette lighter power cable
Applied Model: Applicable to construction machinery & buses, etc., not applicable to trucks
Brand: Mitsubishi

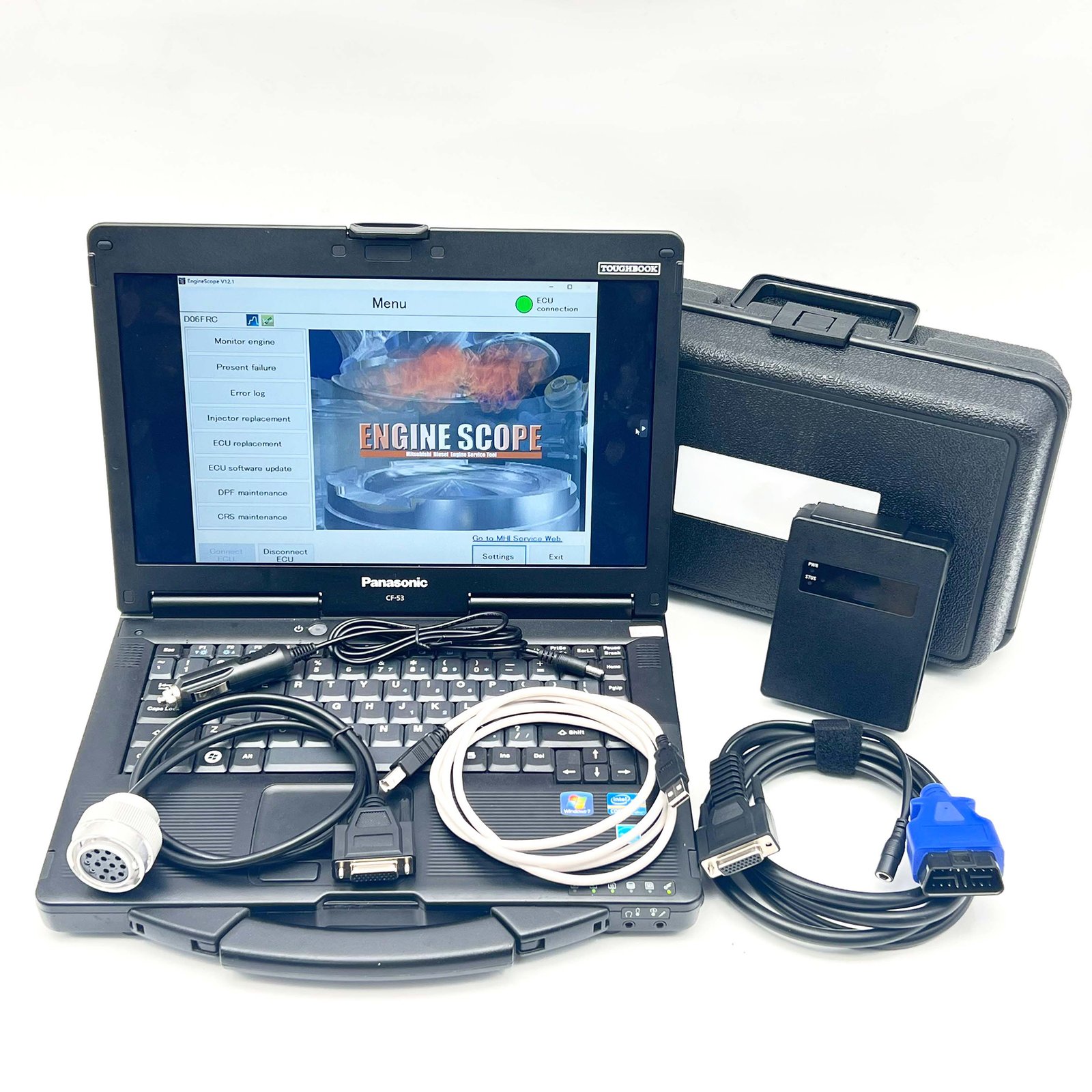

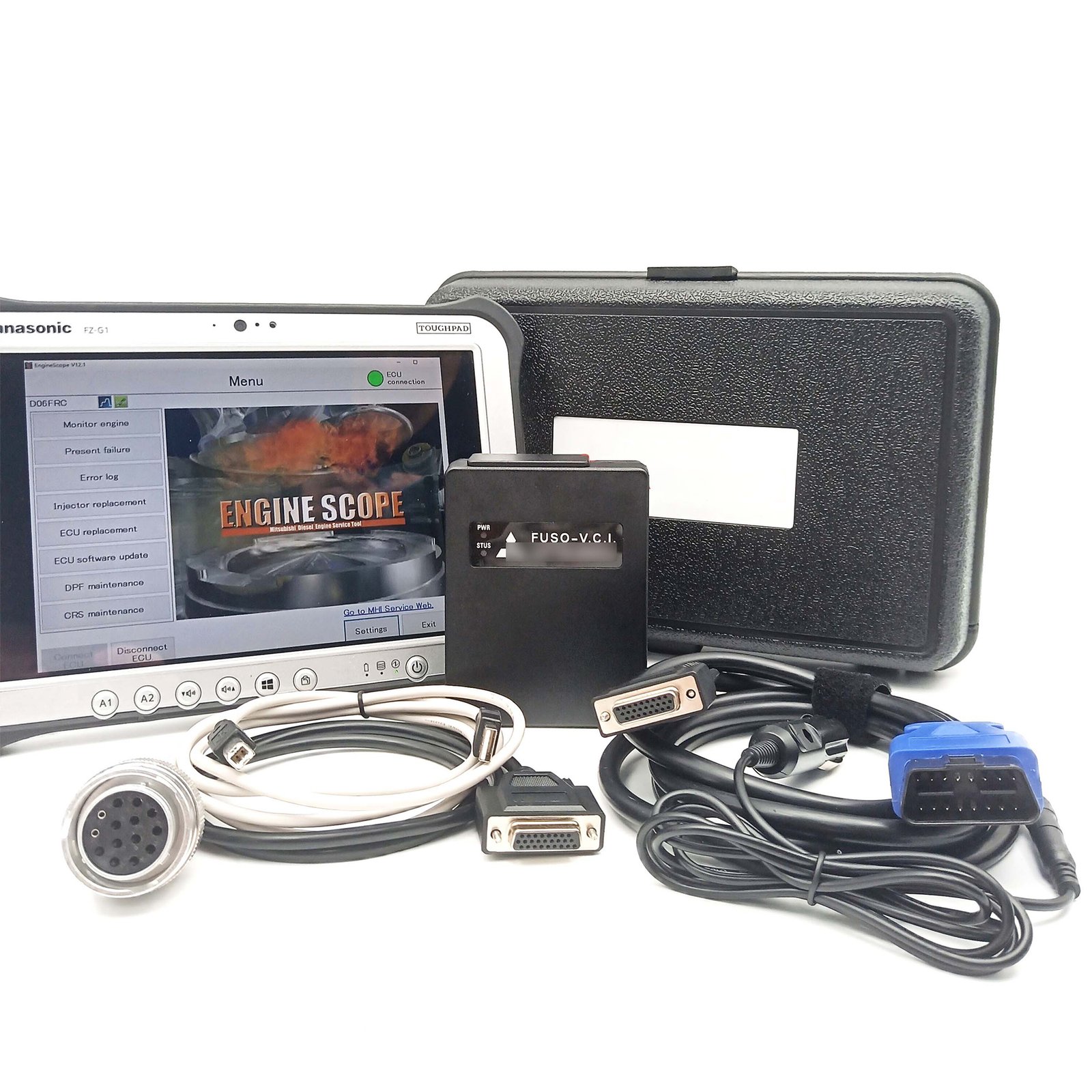

A personal computer (PC) is connected to the MUT-III unit and serves as the system’s control terminal, communicating with a vehicle ECU through the Vehicle Communication Interface (VCI). In addition to handling all diagnostic functions covered by the conventional MUT-II tester, the MUT-III system can display data as easy-to-understand diagrams and graphs on the PC’s large screen. Unlike the MUT-II, the MUT-III can store data for all vehicles, from older to newer models, in the PC’s hard disk, categorized by destination. This eliminates the time-consuming but necessary task of switching data lists (communication protocol data and diagnosis item list database) by replacing ROM packs based on vehicle model and year.
New PC-based functions are also being developed to enhance usability. For example, the workshop manual viewer is a useful function for mechanics, allowing them to access repair manuals digitally instead of carrying around bulky books. This feature, currently available for select vehicle models, enables users to retrieve failure code pages for specific issues with the push of a button.
The MUT-III PC software supports the following languages:
Chinese, English, French, Spanish, Taiwanese, Thai, Vietnamese.

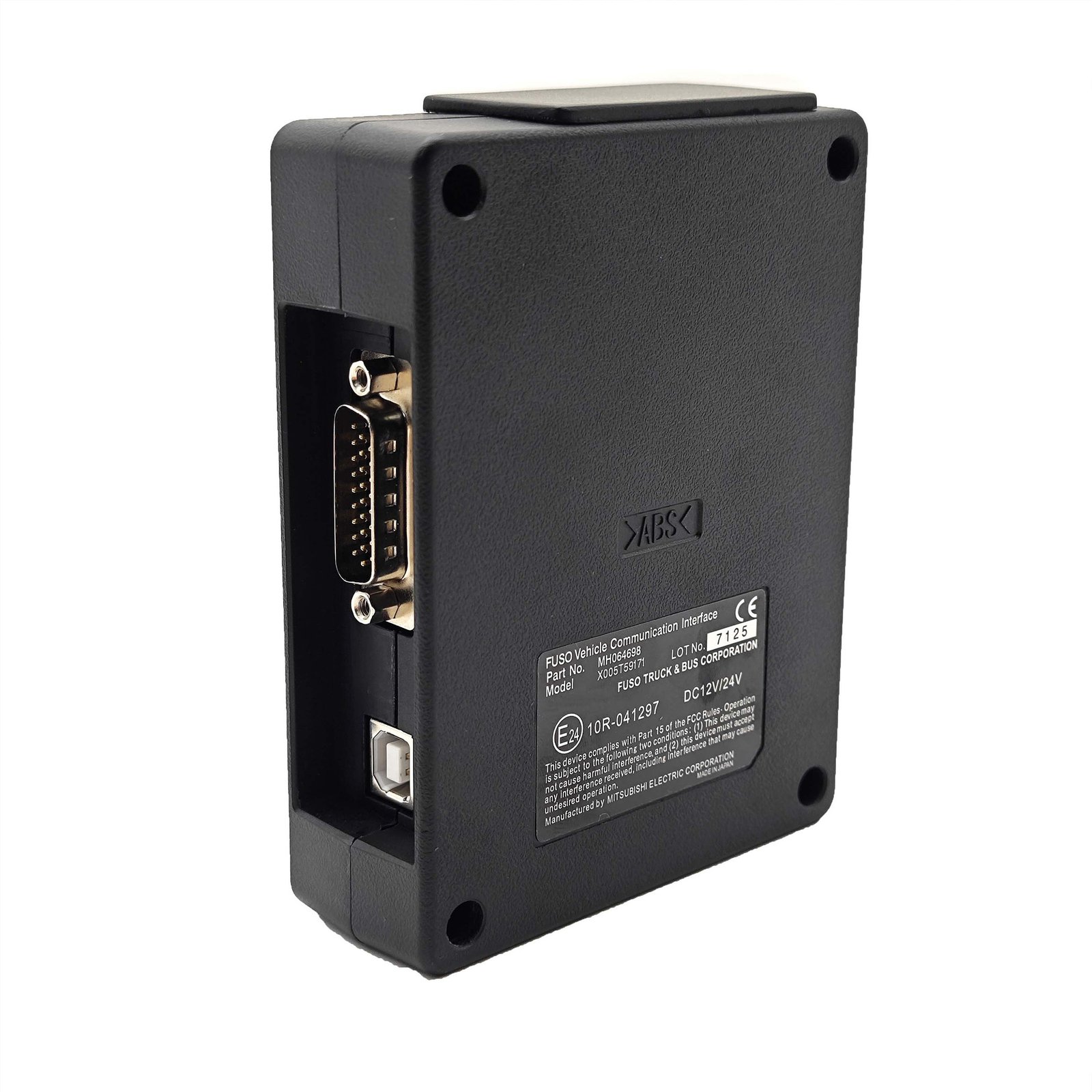

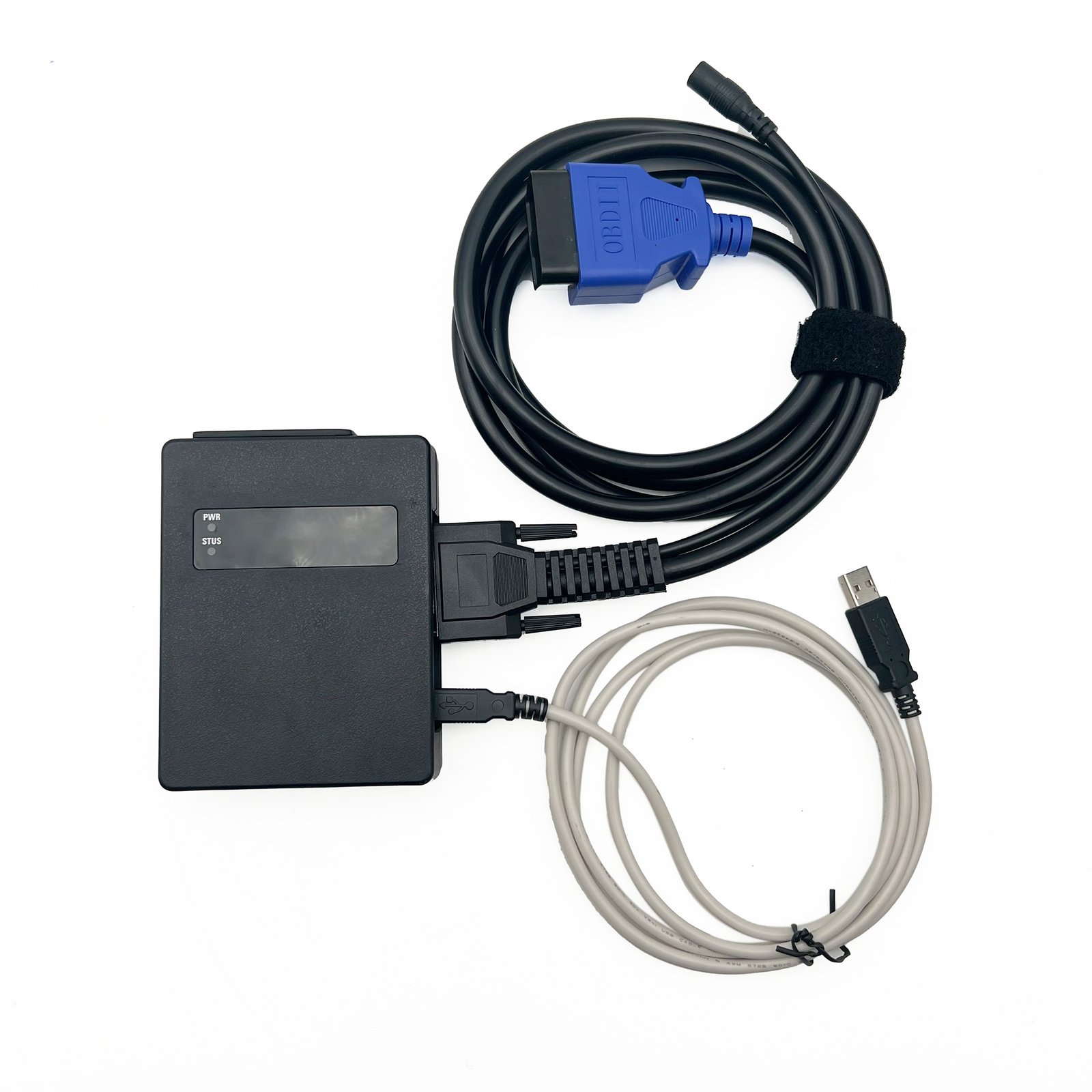

Vehicle Communication Interface (V.C.I.)
A communication interface used to connect the vehicle ECUs to the PC.
When connected to a PC:
Vehicle diagnosis (interactive fault diagnosis)
SWS communication & CAN communication support
Drive recorder
ECU reprogramming
Voltage & Ohm measurement
Fuel pressure measurement (not available in the U.S.)
When used as a standalone unit (without a PC):
VCI standalone diagnosis
Drive recorder
ECU reprogramming
Voltage & Ohm measurement
Belt tension measurement
Memory Card
Stores data for ECU reprogramming, drive recorder, etc.
A standard off-the-shelf memory card is included (preloaded with reprogramming data).
Note: Currently, this Mitsubishi adapter software does not support trucks.
Product images
