Description
Product Information
Latest AUTEL MaxiSys Elite with J2534 ECU Preprogramming Box.
Brand: AUTEL
| Operating System | Android 4.4.4 KitKat | |
| Processor | NVIDIA Tegra® 4 (4-PLUS-1 Quad-core Processor) 1.8GHz with ARM Cortex – A15 CPU | |
| Memory | 2GB RAM & 32GB Embedded Memory | |
| Display | 9.7” Retina display with 2048X1536 resolution & Capacitive touch screen | |
| Connectivity | 802.11a/b/g/n/ac WIFI Version 2.1 3Mbs Bluetooth RJ45 Ethernet Connection 3.0 USB (2.0 Compatible) HDMI 1.4a SD Card (Support up to 32GB) | |
| Camera | Rear: 8.0 Megapixel, Autofocus with Flashlight Front: 2.0 Megapixel | |
| Sensors | Ambient Light Sensor, G-sensor | |
| Audio Input/Output | Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack | |
| Power and Battery | 3.7V/13600mAH Lithium-polymer battery DC/12V/3A Power Supply | |
| Input Voltage | DC/12V/3A | |
| Power Consumption | Max 20W | |
| Operating Temperature | -10 to +55°C | |
| Storage Temperature | -20 to +70°C | |
| Dimensions (W x H x D) | 309 X 225 X 35 (mm) | |
| Weight | 1.59 kg | |
| Protocols | ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L lins, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708V |
| Comparison | Maxisys Elite | Maxisys MS908P | Maxisys MS908 | Maxisys Mini MS905 |
| CPU | NVIDIA Tegra® 4 1.8GHZ | Samsung Exynos Quad 1.4GHZ | Samsung Exynos Quad 1.4GHZ | Samsung Exynos Quad 1.4GHZ |
| OS | Android 4.4.4 KitKat | AndroidTM 4.0 ICS | AndroidTM 4.0 ICS | AndroidTM 4.0 ICS |
| SSD HD | 32GB | 32GB | 32GB | 32GB |
| Touch Screen | 9.7” 2048X1536 LCD Capacitive | 9.7" 1024x768P LED capacitive | 9.7" 1024x768P LED capacitive | 7.9" 1024x768P LED capacitive |
| Connectivity | USB 3.0/WLAN/BT | USB 2.0/WLAN/BT | USB 2.0/WLAN/BT | USB 2.0/WLAN/BT |
| Dual Brand Wifi G/N | ≥10GHz | 2.4 & 5 GHz | 2.4 & 5 GHz | 2.4 & 5 GHz |
| Internal Battery | Y | Y | Y | Y |
| Weight | 3.5lb | 3.12lb | 3.12lb | 1.54lb |
| Camera(Rear) | 8.0 Megapixel/AF/Flash | 5.0 Megapixel/AF/Flash | 5.0 Megapixel/AF/Flash | 5.0 Megapixel/AF/Flash |
| Wireless BT VCI | USE J2534 | USE J2534 | Y | Y |
| Optional Lab Scope | Y | Y | Y | Y |
| Optional Video Scope | Y | Y | Y | Y |
| Boot Up Time | 15 secs | 20 secs | 20 secs | 20 secs |
| Autel's Powerful OEM Level Coverage | Y | Y | Y | Y |
| AUTO VIN Technology | Y | Y | Y | Y |
| Maxifix Cloud Based Info System | Y | Y | Y | Y |
| Shop Manager | Y | Y | Y | Y |
| ECU Coding | Advanced | Advanced | Y | Y |
| ECU Flash Porgramming | Y | Y | Optional W/ Maxiflash Kit | N |
| 1996-2001 Connector Kit | Complete Connector kit | Complete Connector kit | Complete Connector kit | OBDII Connector Kit Optional Connector Kit |
| J2534 Hardware | Included | Included | Optional | N |

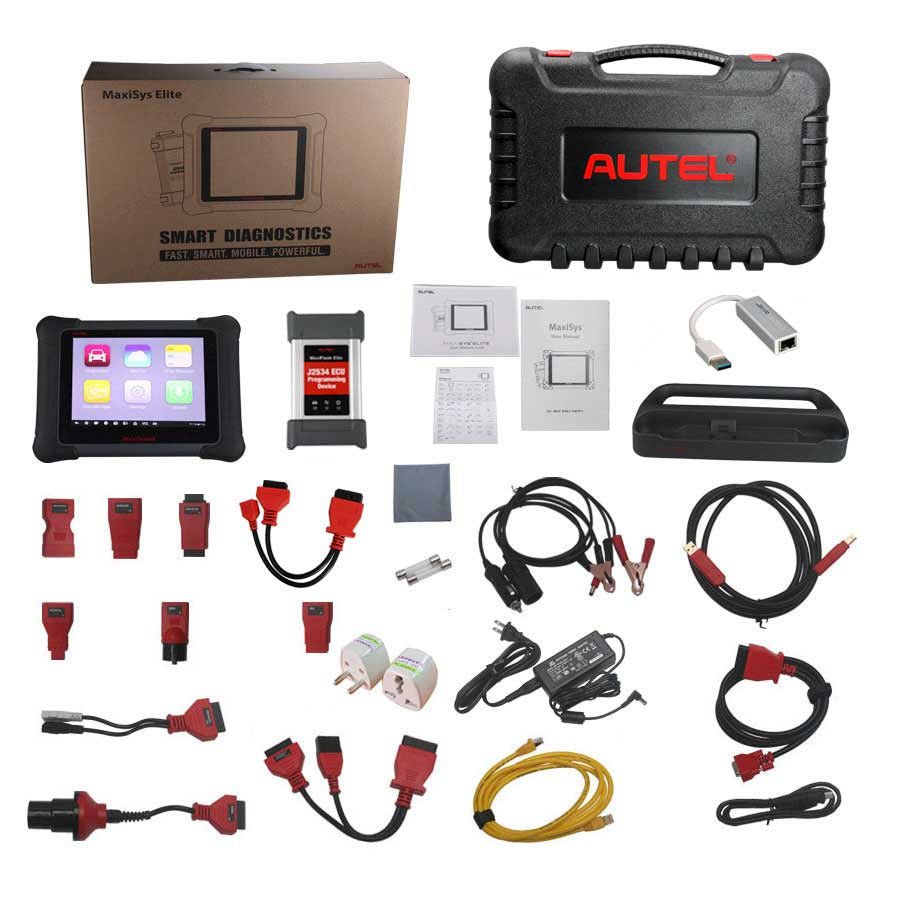

Product Images & Diagrams
