Description
AUTOOL AST609 Brake Fluid Exchanger
The AUTOOL AST609 is a pulsating brake fluid exchanger for workshop brake-fluid replacement and bleeding. It combines a pressure gauge, selectable operating modes and a portable case for service work.

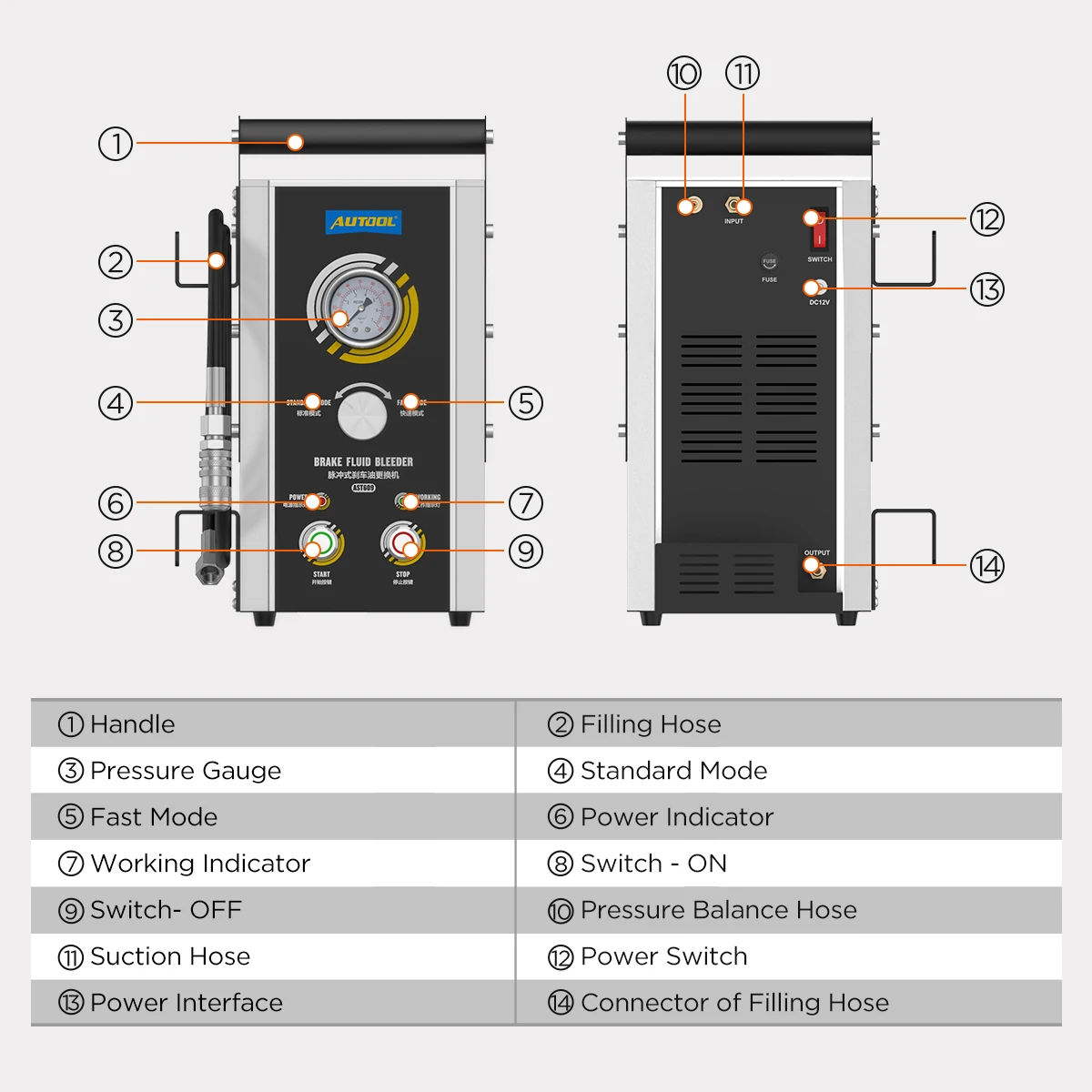

Operating Features
- Standard and fast pressure modes for the operating sequence shown in the product instructions.
- AC power or a 12V battery connection using the corresponding power accessories.
- Pressure gauge for viewing the working pressure during the procedure.

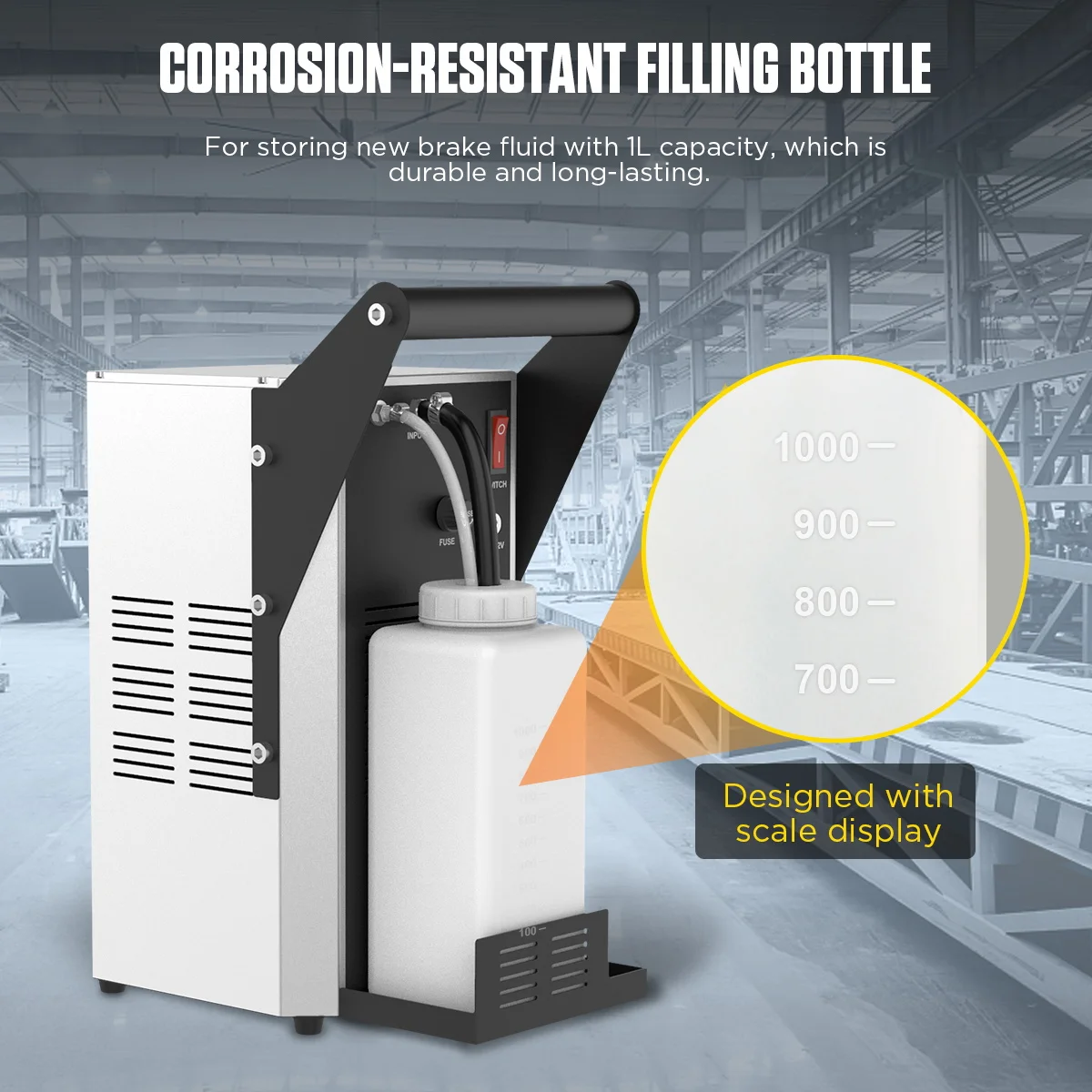

- Filling bottle with a visible fluid level and an empty-container protection function.

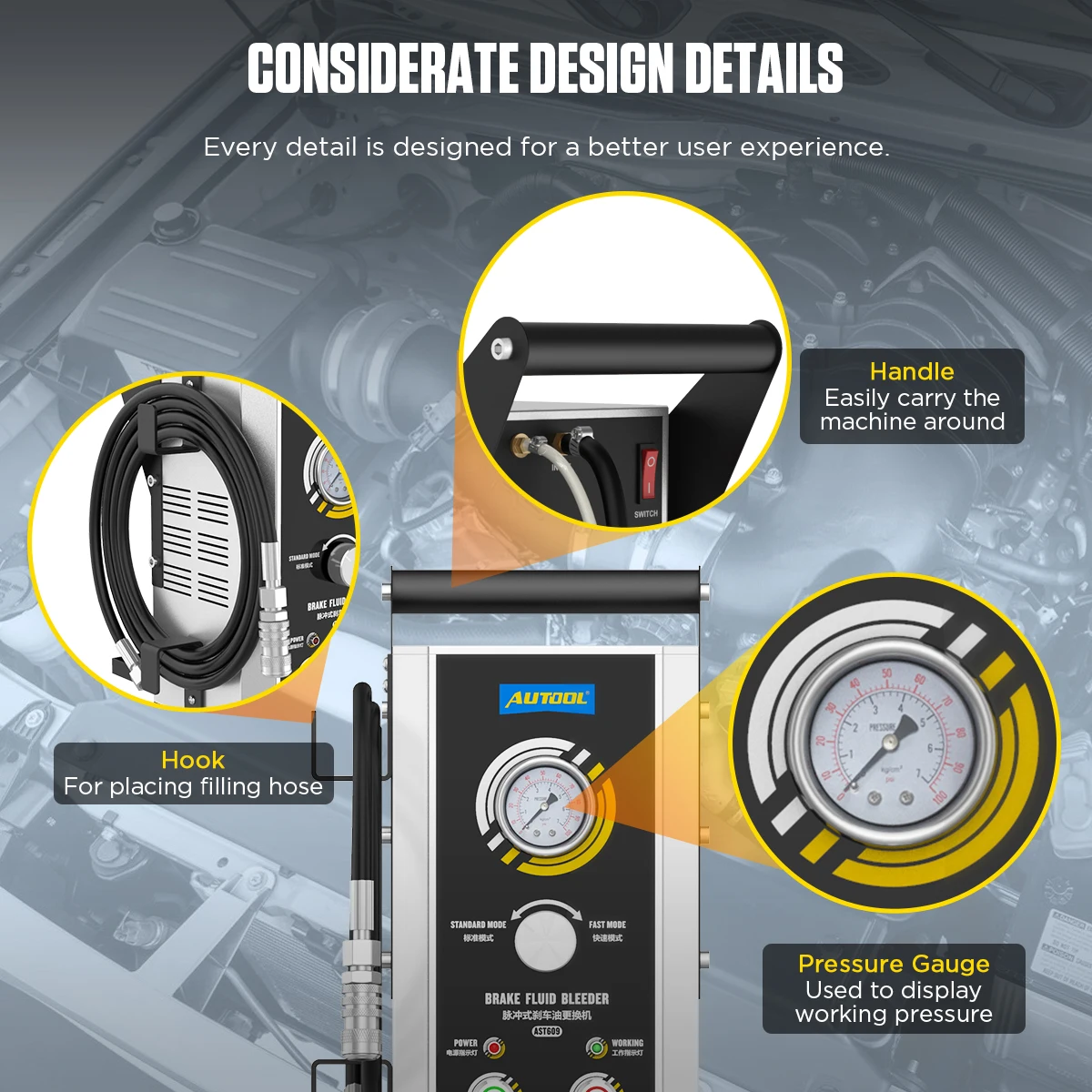

- Carrying handle and hose-storage provisions for moving the unit around a workshop.
- Brake adapters for the applications shown in the supplier’s adapter chart.

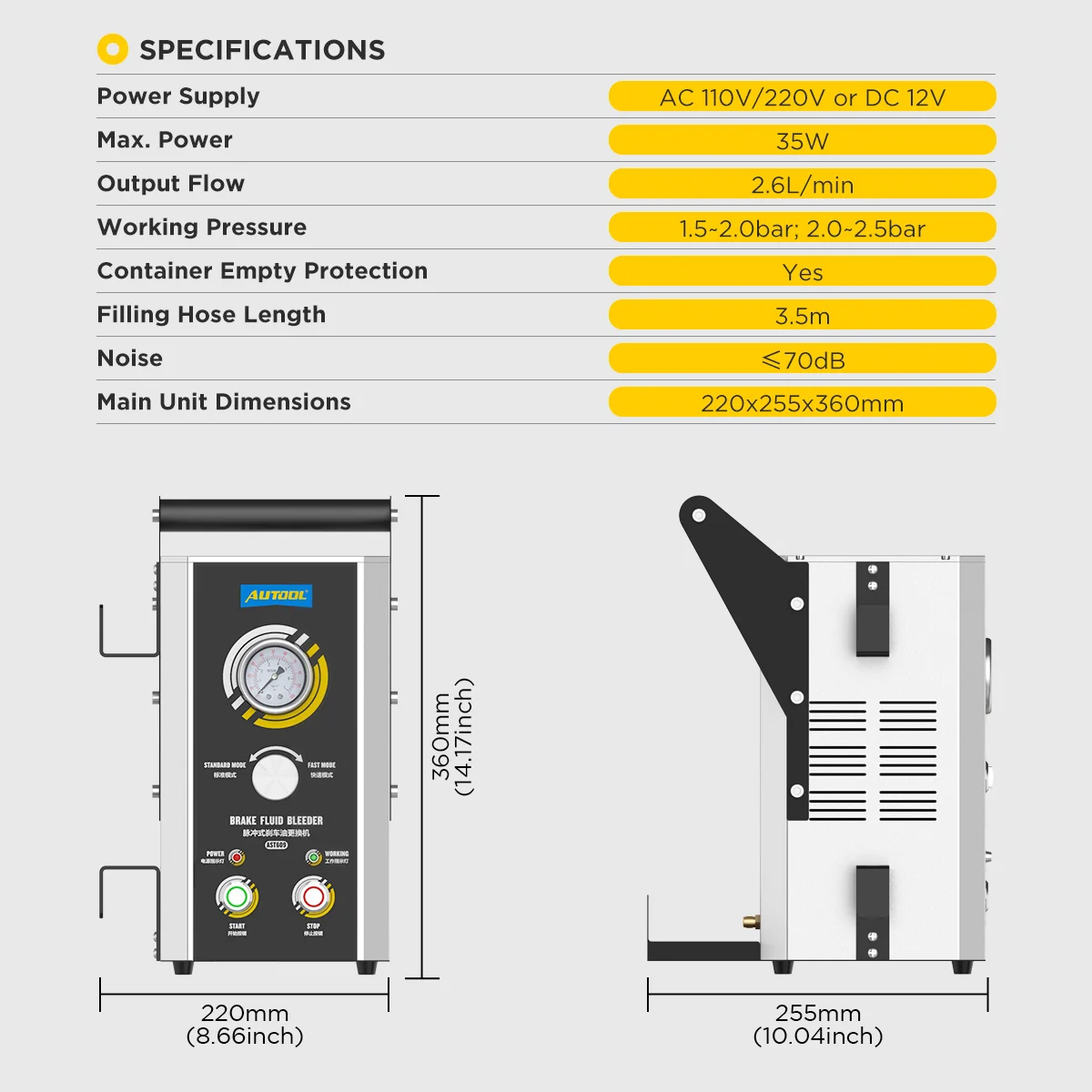

Technical Information
| Model | AUTOOL AST609 |
|---|---|
| Power supply | AC 110V / 220V or DC 12V, with the appropriate supply accessories |
| Maximum power | 35W |
| Output flow | 2.6 L/min |
| Standard pressure | 1.5–2.0 bar |
| Fast-mode pressure | 2.0–2.5 bar |
| Filling hose length | 3.5 m |
| Unit dimensions | 220 × 255 × 360 mm |
Package & Application

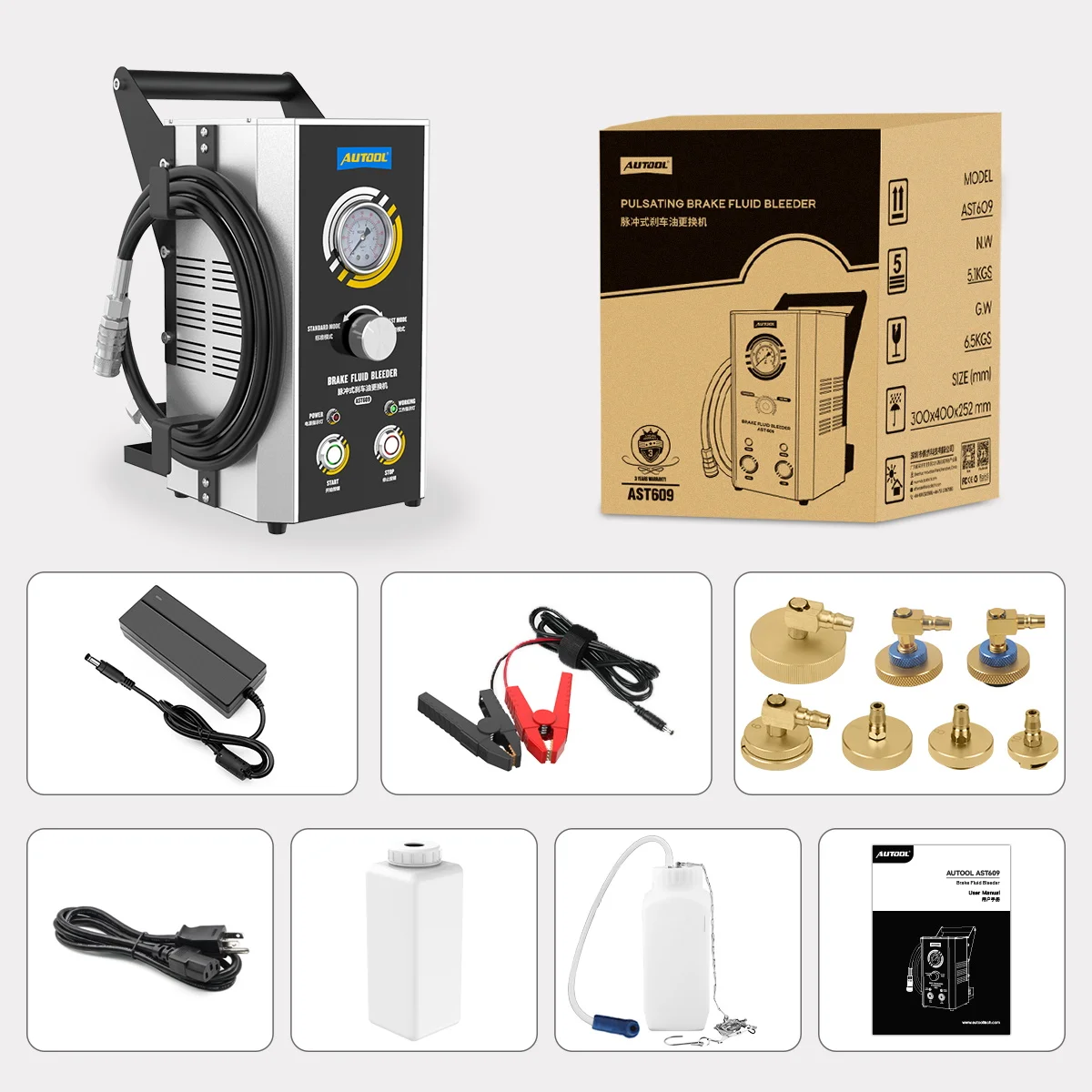

The supplier package image shows the exchanger, power accessories, hoses, fluid bottles, brake adapters and an instruction manual. Match the adapter to the brake system before ordering and review the package image for the supplied accessories.
Confirm the required AC voltage and plug for your destination. Use the vehicle-specified brake fluid and follow the manufacturer’s preparation, air-evacuation and operating instructions.
Product Diagrams
